| Model | MGTL-22/40 | ||
| Applicable material | General-purpose plastics, engineering resins, etc. | ||
| Screw diameter | 21.7mm | ||
| L/D | 40 | ||
| Screw speed | 0-600rpm | ||
| Pressure measurement range | 0-50MPa | ||
| Pressure measurement accuracy | 0.5%FS | ||
| Operating temperature | Room temperature-350℃ | ||
| Temperature accuracy | ±1℃ | ||
| Number of pull strips | 4条 | ||
| Pellet length | 3±0.2mm | ||
| Pelletizing Diameter | 1-4mm | ||
| Pelletizing Diameter | 0-800rpm | ||
| Working voltage | 3φ380VAC±10%，1φ220VAC±10%，50Hz | ||
| Rated power | About 25kw | ||
| L×W×H | 4800mm×950mm×1800mm | ||
| Weight | About 1300kg |
Small precision film longitudinal stretching machine can conduct continuous longitudinal stretching tests on film samples of a certain size at the required stretching ratio at a suitable temperature
Desktop small precision extrusion calender is composed of a small precision single screw extruder, a screen changer system, a calendering die,
Desktop small precision extrusion casting machine is composed of a small precision single screw extruder, a screen changer system, a casting die, a casting system
Desktop small precision extrusion casting film blowing integrated machine is composed of a small precision single screw extruder, a screen changer system
Lab blow film machine adopts precision extrusion and high-performance film blowing molding technology. It is suitable for film blowing molding of common polymer materials such as PE

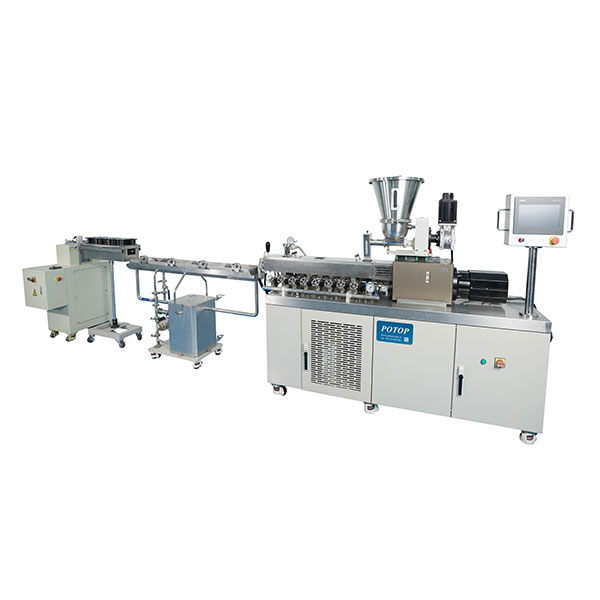

Twin-Screw Extrusion Granulator consists of split small precision twin-screw extruder screen changer, pelletizing die,cooling water tank,air-drying device and small precision pelletizer
Triple-screw extrusion granulator consists of a split-type small precision triple-screw extruder, screen changer, granulation die, cooling water tank
Multi-layer Co-extrusion Casting Pilot Line consists of 3 precision single-screw extruders, 3 screen changers, 3 melt pump systems, 1 three-layer co-extrusion die
3D Printing Filament Extrusion Pilot Line consists of a precision single-screw extruder, wire die, cooling water tank, diameter gauge system, haul-off system, traversing winder
