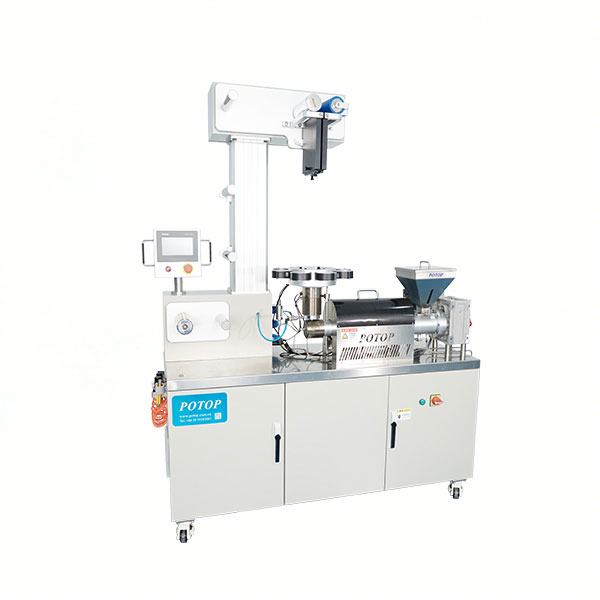

| Model | FBVI-20/22 | ||
| Applicable material | PE、POF、PVC | ||
| Screw diameter | 20mm | ||
| L/D | 28 | ||
| Screw speed | 0-120rpm | ||
| Max.lay flat width | 200mm | ||
| Product specification | 0.02-0.15mm | ||
| Roll width | 220mm | ||
| Linear speed | 0-10m/min | ||
| Pressure measuring range | 0-50MPa | ||
| Pressure measuring accuracy | 0.5%FS | ||
| Operating temperature | Room temperature-350℃ | ||
| Temperature accuracy | ±1℃ | ||
| Working voltage | 3φ380VAC±10%，1φ220VAC±10%，50Hz | ||
| Rated power | About 9kW | ||
| L×W×H | 1715mm×610mm×2000mm | ||
| Weight | About 550kg |
