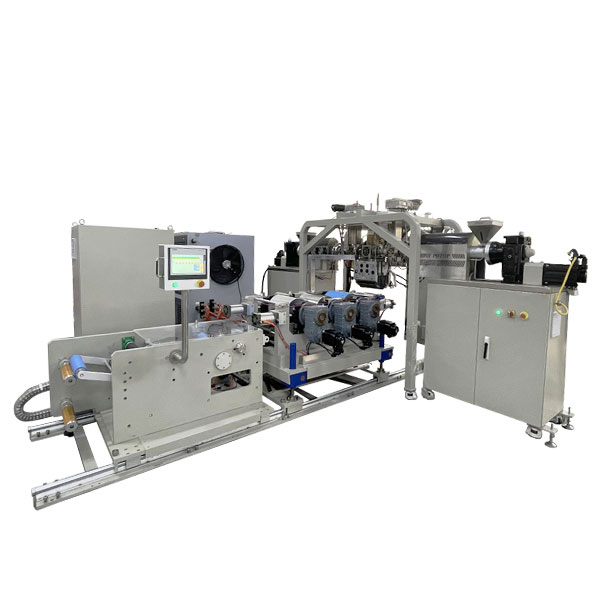

| Model | FDCL-25/35 | ||
| Applicable materials | PE、PP,etc. | ||
| Screw diameter | 25mm | ||
| L/D | 28 | ||

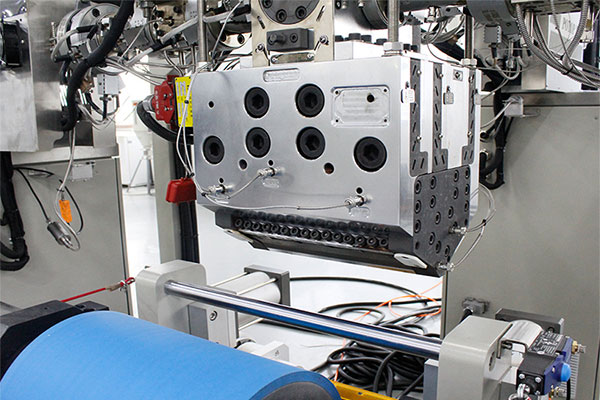

| Die distribution form | 3 (ABC structure) | ||
| Die head width | 300mm | ||
| Product width | 0-250mm（depends on the material） | ||
| Product thickness | 0.05-0.15mm | ||
| Roll width | 350mm | ||
| Linear speed | 0-10m/min | ||
| Pressure measuring rang | 0-50MPa | ||
| Pressure measuring accuracy | 0.5%FS | ||
| Operating temperature | Rt-350℃ | ||
| Temperature accuracy | ±1℃ | ||
| Working voltage | 3φ380VAC±10%，1φ220VAC±10%，50Hz | ||
| Rated power | About 84kW(including temperature cycle controller) | ||
| L×W×H | 6120mm×4580mm×2240mm | ||
| Weight | About 7900kg | ||
| Screw speed | 0-120rpm |
