Extrusion Capillary Rheometer

HOME / products / Extrusion Capillary Rheometer

Product Introduction

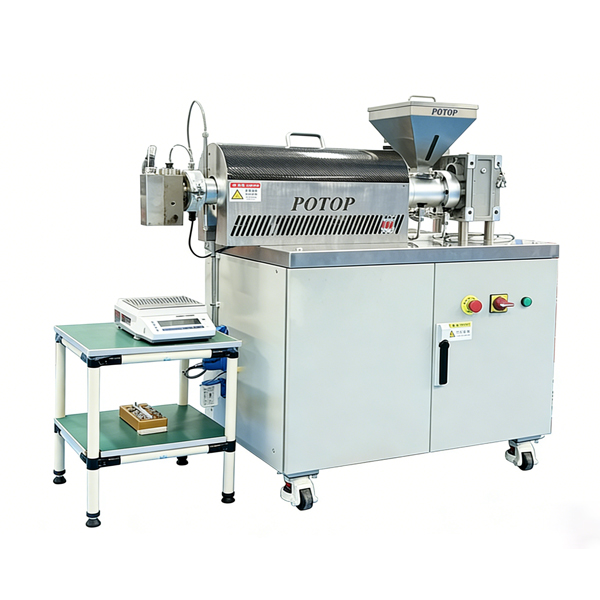

Extrusion Capillary Rheometer is a high-precision device designed for measuring shear stress rates under high-stress conditions. It comprehensively characterizes the flow properties of polymer materials, making it an essential instrument for material analysis and process optimization.

DESCRIPTION

Key Features

● High-Precision Sensing and Testing:

Utilizes internationally renowned GEFRAN melt pressure sensors, paired with high-performance servo motors, ensuring high accuracy in pressure and torque data acquisition, stable speed, and a wide speed range.

● Multifunctional Modular Design:

a.Standard capillary die allows for testing apparent viscosity curves.

b.Different aspect ratio capillary dies can be used.

c.Optional narrow-slit dies can be used to test rheological curves under special flow fields.

d.Optional laser diameter gauge automatically records extrudate diameter in real time, enabling precise study of extrusion swell behavior.

● High Integration:

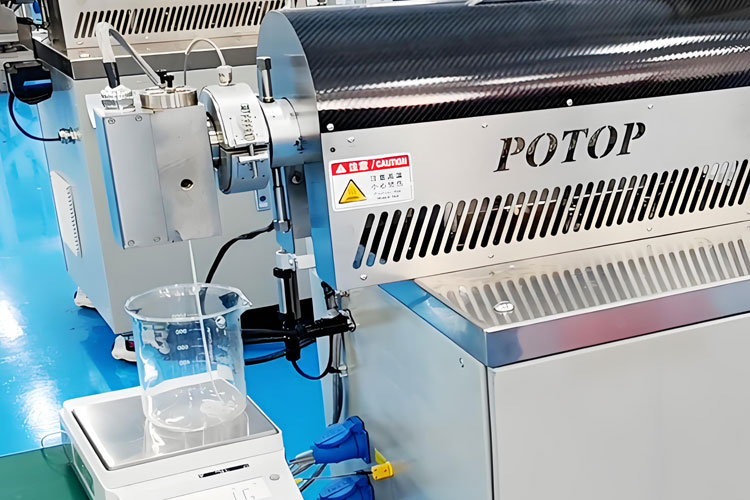

Integrates an automatic weighing unit with a high-precision electronic scale, accurately measuring extrudate mass and transmitting data in real time to the control system for calculation, improving testing efficiency and accuracy.

● Intelligent and Convenient:

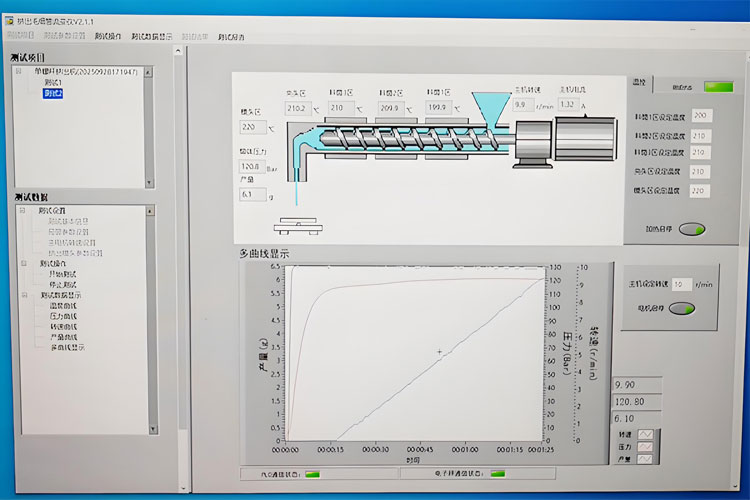

Self-developed dedicated software with a user-friendly interface, providing real-time display of test curves and data storage; Siemens PLC control with an ergonomic design for simple and easy operation.

Application Industries & Fields

Widely utilized across multiple high-end manufacturing sectors, the rheometer is indispensable for quality control and R&D in the following:

Fields: Plastics, Rubber, Chemical Fiber, Food, Pharmaceuticals, Lithium Batteries, Photovoltaics, 5G Communications, and Aerospace.

Core Testing Functions

● Rheological Curve Testing: Accurately measure apparent/true viscosity curves and rheological curves of polymer materials.

● Processability Characterization: Evaluate material flowability, thermal stability, and shear sensitivity.

● Characteristic Parameter Measurement: Determine key material parameters such as melting point, melt density, and flow activation energy.

● Special Behavior Research: Investigate complex phenomena like melt flow instability, melt fracture, and extrusion swell.

Main Technical Parameters

Applicable material		General Plastics
Screw diameter		25mm
L/D		28
Screw speed		0-100rpm
Pressure measurement range		0-50MPa
Pressure measurement accuracy		0.5%F.S
Operating temperature		Rt-350℃
Temperature accuracy		±1℃
Weighing range		0-4100g
Weighing accuracy		±0.1g
Working voltage		3φ380VAC±10%，1φ220VAC±10%，50Hz
Rated power		About 14kW
L×W×H		1410mm×725mm×1300mm
Weight		About 330kg
