3D Printing Filament Extrusion Pilot Line

Product Introduction

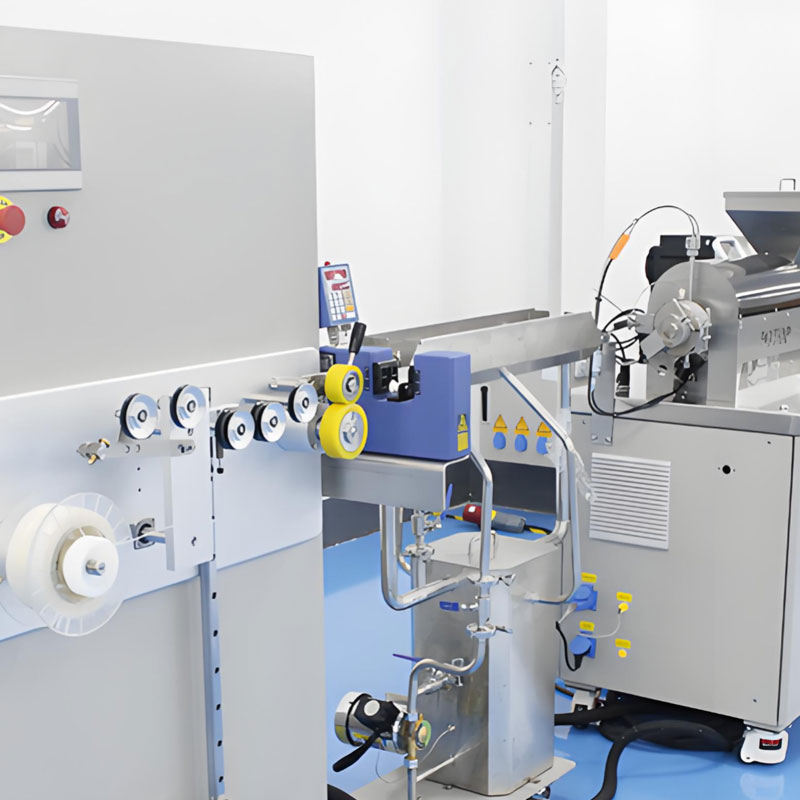

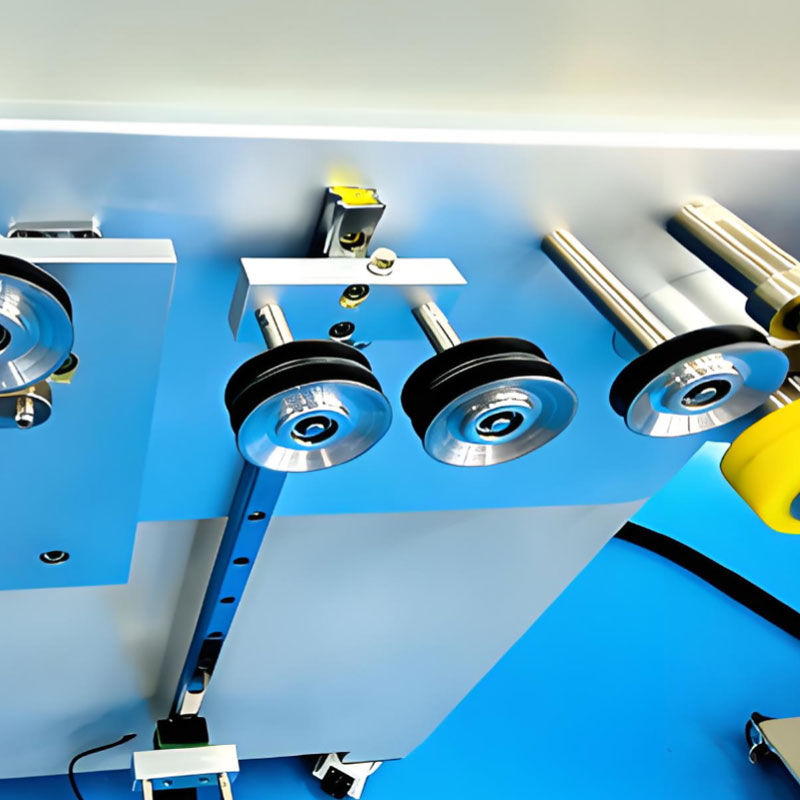

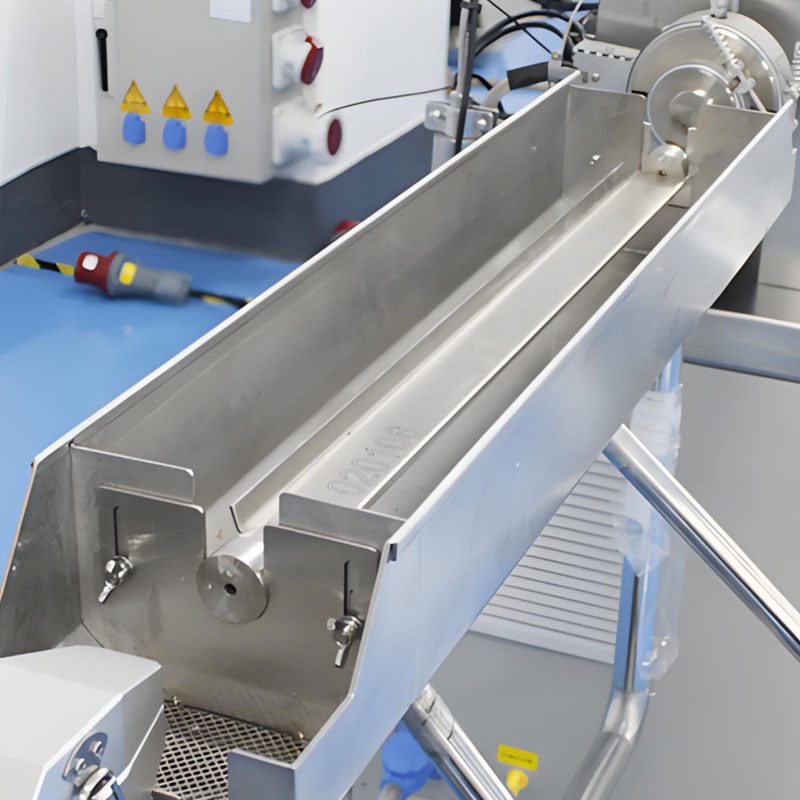

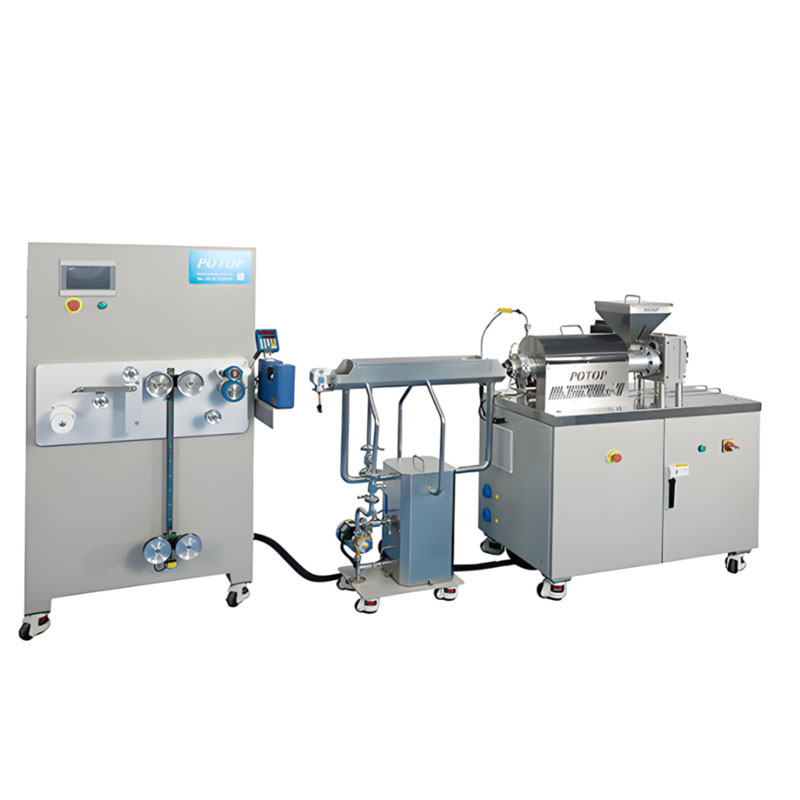

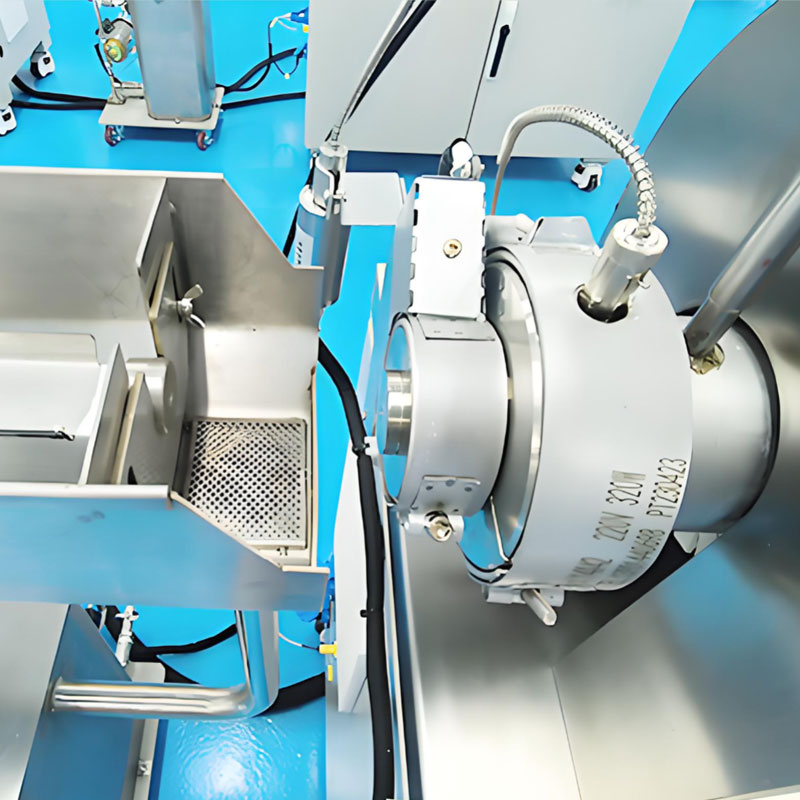

3D Printing Filament Extrusion Pilot Line consists of a precision single-screw extruder, wire die, cooling water tank, diameter gauge system, haul-off system, traversing winder, and measurement & control system. It enables functions such as filament extrusion, cooling, diameter measurement, and winding.

DESCRIPTION

Key Features

● High-Precision Closed-Loop Control

Stable Diameter: Equipped with a laser diameter gauge, it forms a closed-loop control with the haul-off unit, achieving a product diameter accuracy of up to ±0.02mm.

Precise Temperature Control: Utilizes PID fuzzy logic control, with temperature control accuracy in each zone reaching ±1℃, ensuring uniform material plasticization.

● Intelligent Operation

Features a Siemens PLC control system with a touch screen, displaying real-time data on melt pressure, temperature, and diameter curves for intuitive data acquisition.

Supports remote monitoring, facilitating future integration into smart automated factories.

● Integrated Design, Space-Saving

Compact structure integrating extrusion, cooling, haul-off, diameter measurement, and winding into one unit.

● Wide Material Adaptability

Standard Type: Suitable for common materials like PLA, ABS, TPU/TPR, PA6, PVA.

High-Temperature Type (Customizable): Can be customized to a high-temperature model up to 450℃ to process specialty engineering plastics such as PEEK, PEK, and PI.

Application Industries & Fields

Industries: Plastic modification, biodegradable materials, specialty engineering plastics.

Application:

● Performance testing of polymer materials for filament extrusion.

● Formulation design for plastic filaments.

● Optimization and control of plastic filament extrusion process parameters.

● Process optimization, cost control, and small-scale sampling.

Main Technical Parameters

Model		SESL-20/02
Applicable material		PLA、PVC、PE、ABS、EVA、PP、PC、TPU
Screw diameter		20mm
L/D		28
Screw speed		0-120rpm
Linear velocity		0-10m/min
Wire diameter		1.75mm
Wire accuracy		±0.02mm
Pressure measuring range		0-50MPa
Pressure measuring accuracy		0.5%F.S
Operating temperature		Rt-350℃
Temperature accuracy		±1℃
Working voltage		3φ380VAC±10%，1φ220VAC±10%，50Hz
Rated power		About 8kw
L×W×H		3020mm×1050mm×1520mm
Weight		About 600kg

Enquiry details
