| Model | FDBI-25/22 | ||
| Applicable materials | PE、PP、POF、PVC | ||
| Screw diameter | 25mm | ||
| L/D | 28 | ||
| Screw speed | 0-120rpm | ||
| Cast die width | 200mm | ||
| Cast product width | 0-150mm (depending on the material) | ||
| Blown film maximum fold diameter | 200mm | ||
| Product thickness | 0.02-0.15mm | ||
| Roller width | 220mm | ||
| Line speed | 0-10m/min | ||
| Pressure measurement range | 0-50MPa | ||
| Pressure measurement accuracy | 0.5%FS | ||
| Temperature control range | Room temperature -350℃ | ||
| Temperature control accuracy | ±1℃ | ||
| Working voltage | 3φ380VAC±10%，1φ220VAC±10%，50Hz | ||
| Rated power | About 24kW (including temperature cycle controller) | ||
| L × W × H | 2400mm×1000mm×2205mm | ||
| Weight | About 1200kg |
Small precision film longitudinal stretching machine can conduct continuous longitudinal stretching tests on film samples of a certain size at the required stretching ratio at a suitable temperature
Desktop small precision extrusion calender is composed of a small precision single screw extruder, a screen changer system, a calendering die,
Desktop small precision extrusion casting machine is composed of a small precision single screw extruder, a screen changer system, a casting die, a casting system

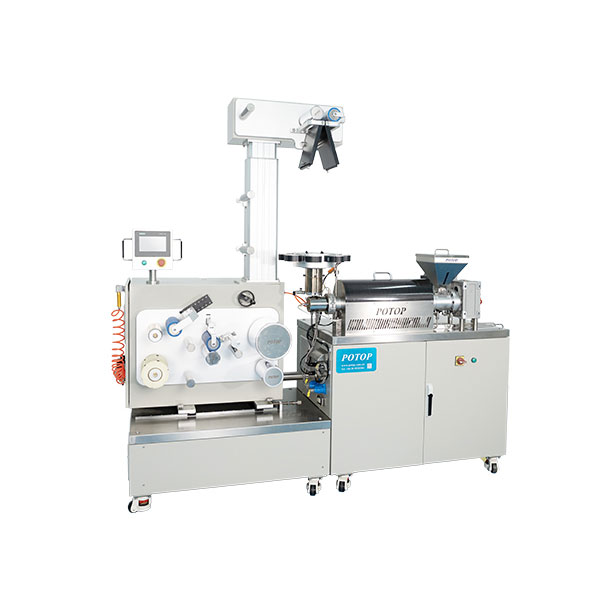

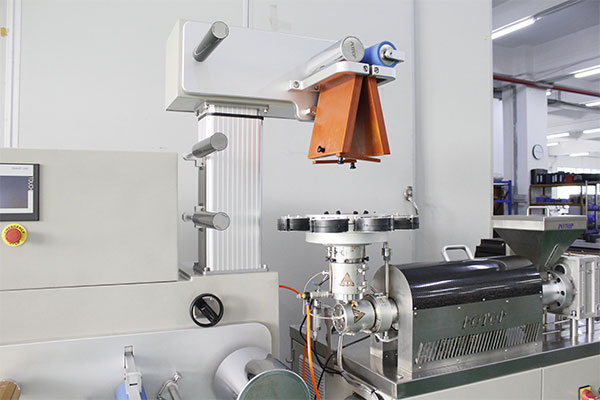

Desktop small precision extrusion casting film blowing integrated machine is composed of a small precision single screw extruder, a screen changer system
Lab blow film machine adopts precision extrusion and high-performance film blowing molding technology. It is suitable for film blowing molding of common polymer materials such as PE
Twin-Screw Extrusion Granulator consists of split small precision twin-screw extruder screen changer, pelletizing die,cooling water tank,air-drying device and small precision pelletizer
Triple-screw extrusion granulator consists of a split-type small precision triple-screw extruder, screen changer, granulation die, cooling water tank
Multi-layer Co-extrusion Casting Pilot Line consists of 3 precision single-screw extruders, 3 screen changers, 3 melt pump systems, 1 three-layer co-extrusion die
3D Printing Filament Extrusion Pilot Line consists of a precision single-screw extruder, wire die, cooling water tank, diameter gauge system, haul-off system, traversing winder
