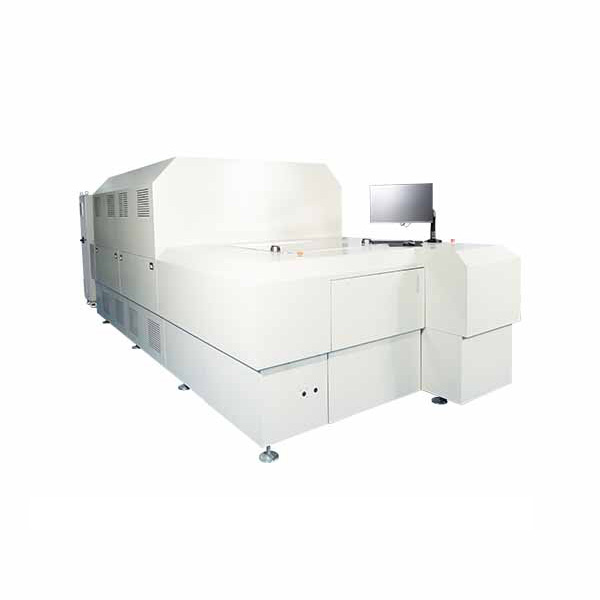

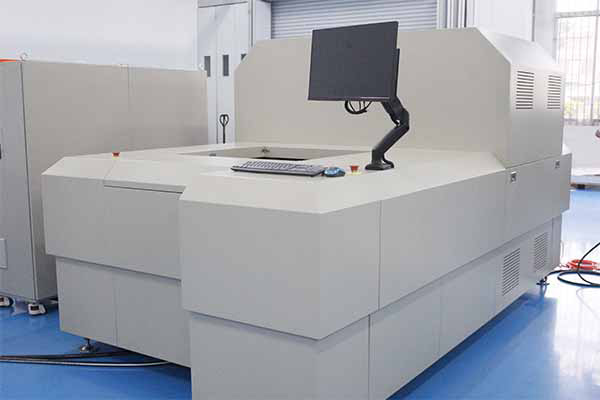

10X Biaxial Stretcher

Product Introduction

10X Biaxial Stretcher is a high-end experimental equipment specially designed for testing the mechanical properties of film materials. By synchronously stretching film samples in the longitudinal and transverse directions, the instrument accurately simulates the complex stress environment in actual service scenarios, providing reliable data support for material research and development as well as quality control.

DESCRIPTION

Key Features

● High magnification stretching: Supports 10:1 stretching ratio, fully demonstrating the mechanical properties and ductility of materials to meet the testing needs of various films;

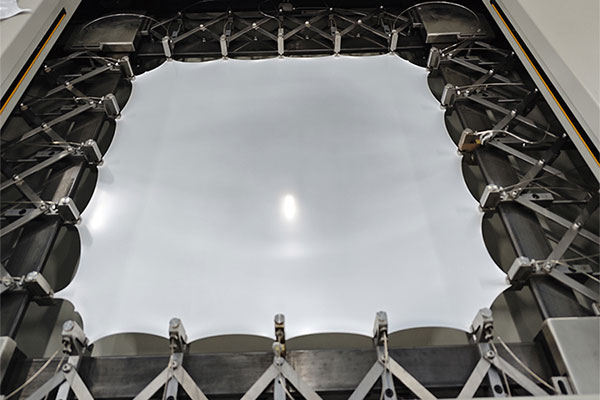

● Multi-mode adaptation: Can realize biaxial synchronous, biaxial asynchronous and uniaxial stretching, adapting to different experimental scenarios and process simulation;

● Precise and controllable: Adopts Siemens motor drive, with high temperature control accuracy and adjustable stretching speed, ensuring stable and reproducible experimental data;

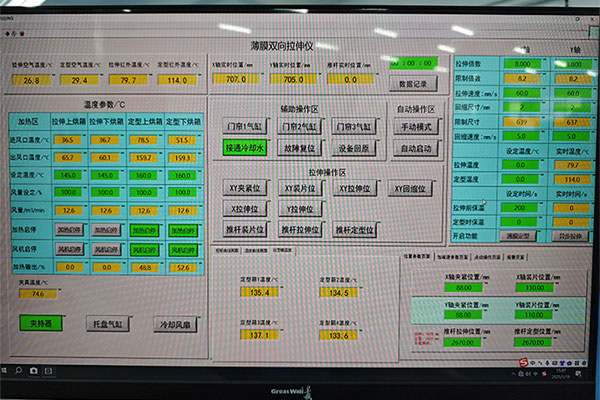

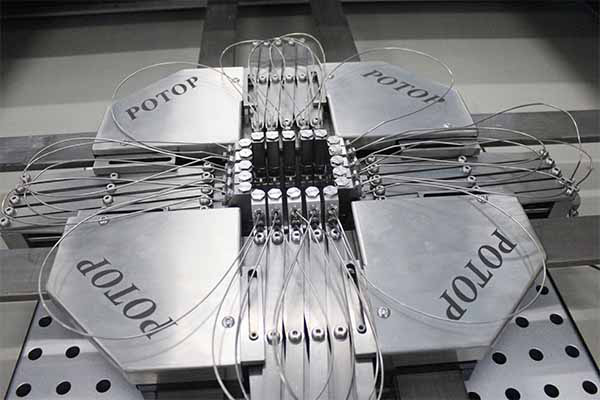

● Convenient and efficient: Pneumatic film loading design for simple operation, combined with an intelligent control system, enabling the whole experimental process to be traceable and easy to operate;

● Wide adaptability: Compatible with various materials such as PE, PP, PET, PTFE, PVDF, and suitable for testing samples of different thicknesses.

Application Industries & Fields

Industries: Lithium battery, photovoltaic, electronics, medical and health, packaging, new materials, polymer materials, scientific research and education, aerospace and other fields. It is suitable for the testing and R&D needs of various film materials such as PE, PP, PET, PVDF.

Applications:

1) Biaxial tensile testing of various films (PE, PP, PET, PTFE, PA, etc.);

2) New material formulation development and performance verification, optimizing film forming process parameters;

3) Testing and analysis of film physical and chemical properties, providing accurate data support for production;

4)Simulating the biaxial stretching process in industrial production, shortening the cycle from laboratory to industrialization.

Main Technical Parameters

Model		FOCI-10
Applicable material		PE、PP、PET、PTFE、PVDFetc
Sample thickness		0.02-2mm
Sample size		Minimum 95mm×95mm，maximum 110 mm×110 mm
Stretching ratio		10:1(minimum size sample)
Stretching speed		0-500mm/s(stepless adjustable)
Stretching force		2000Nm
Clamp air pressure		2.5MPa
Operating temperature		Rt-250℃
Temperature Accuracy		±3℃
Working voltage		3φ380VAC±10%，1φ220VAC±10%，50Hz
Rated power		About 35kW
L×W×H		3700mm×2100mm×1900mm
Weight		About 3500kg

Enquiry details
