Film Origin Biaxial Stretcher

HOME / products / Film Origin Biaxial Stretcher

Product Introduction

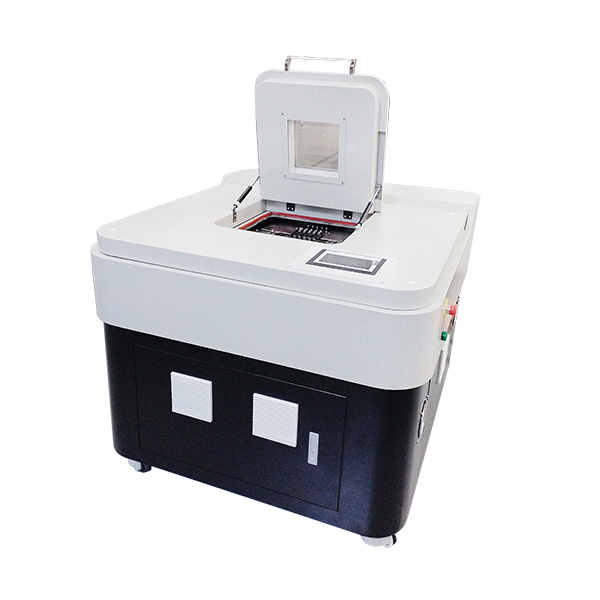

Film Origin Biaxial Stretcher is composed of clamping components, stretching components, stretching mechanism moving components, hot oven components, pneumatic air curtain components and electrical control system. It can perform stretching tests on film samples of a certain size according to the required stretching ratio within a suitable temperature and time. The equipment adopts a mechanical automatic fixture with large clamping force and no clamp detachment. It does not require high-pressure nitrogen, has no air leakage problem, and is more convenient to maintain. The frame design abandons the traditional mobile frame, greatly reducing the equipment volume, which is especially suitable for R&D laboratories of universities and enterprises.

DESCRIPTION

Key Features

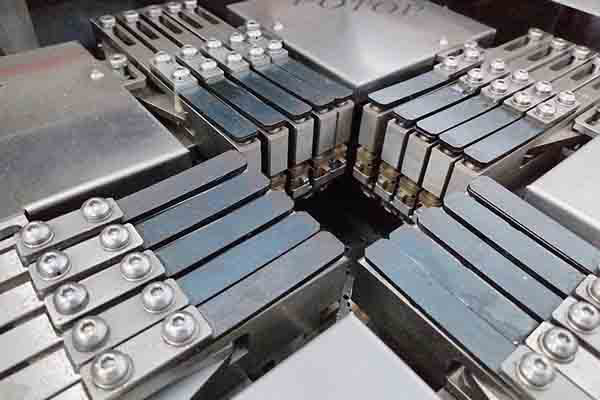

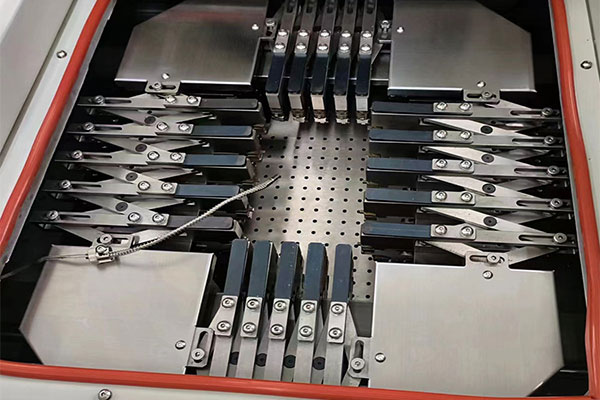

● Mechanical Automatic Clamps,Easy Maintenance

Employs mechanical automatic clamps with performance equivalent to pneumatic clamps, offering strong clamping force and preventing film release. It requires no high-pressure nitrogen, eliminates leakage problems, and is easier to maintain.

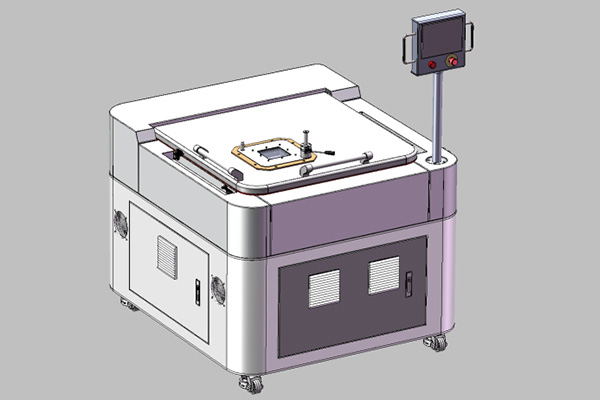

● Compact Design, Space Saving

The overall frame design moves away from the traditional movable frame, greatly reducing the equipment volume, making it more suitable for space-constrained laboratory environments.

● Multiple Stretching Modes, Flexible and Adjustable

Supports various stretching modes such as simultaneous biaxial, sequential biaxial, unconstrained uniaxial, and constrained uniaxial. The stretching speed is adjustable from 0-300 mm/s to meet different R&D requirements.

● Precise Drive and Control

Driven by high-performance servo motors in both directions, providing high torque and stable output. Equipped with multiple PID temperature control points for high precision, ensuring uniform heating of the sample.

● Data-oriented Engineering Instrument

The equipment is a data-oriented engineering instrument with good repeatability and accurate data. The data obtained from tests can be used by researchers for in-depth analysis.

Application Industries & Fields

Industries: Lithium battery, photovoltaic, electronics, medical and health, packaging, new materials, polymer materials, scientific research and education, aerospace and other fields. It is suitable for the testing and R&D needs of various film materials such as PE, PP, PET, PVDF.

Main Applications

● New product development in the field of high-end films.

● Laboratory testing and analysis of physical and chemical properties of new materials for thin film molding.

● High-end film formulation design.

● Process research and parameter optimization.

Main Technical Parameters

Applicable material		PE、PP、PET、PTFE、PVDF
Sample thickness		0.02-1mm
Sample size		Minimum 95mm×95mm，maximum 110 mm×110 mm
Stretching ratio		5:1(minimum size sample)
Stretching speed		0-300mm/s(stepless adjustable)
Stretching force		1000N
Operating temperature		Rt-150℃
Temperature accuracy		±3℃
Working voltage		3φ380VAC±10%，1φ220VAC±10%，50Hz
Rated power		About 14kW
L×W×H		1290mm×1170mm×980mm
Weight		About 800kg
