Product Introduction

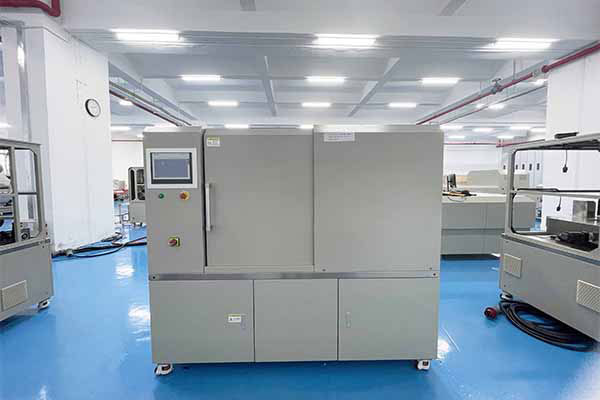

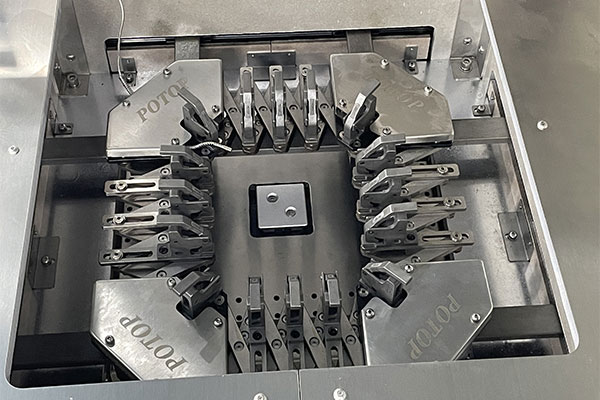

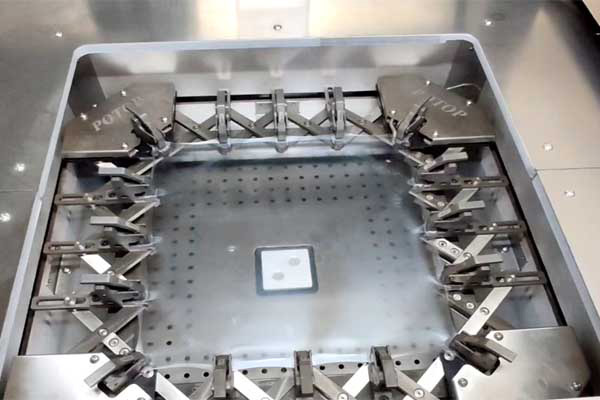

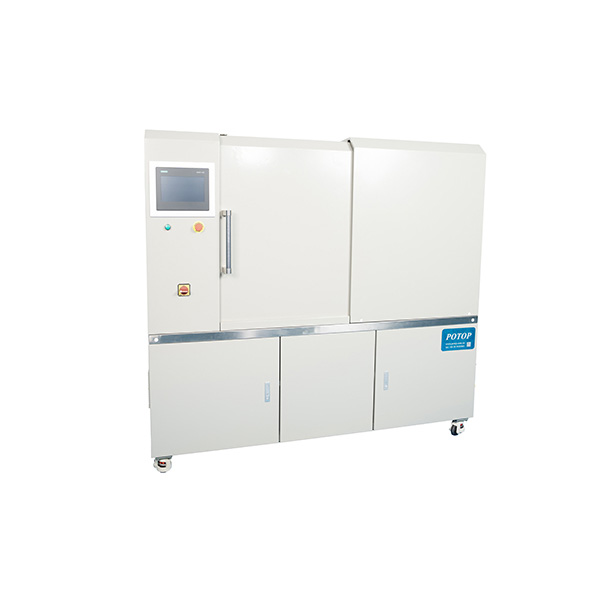

4X Biaxial Stretching Machine is composed of clamping components, stretching components, stretching mechanism moving components, hot oven components, pneumatic air curtain components and electrical control system. It can perform stretching tests on film samples of a certain size at an appropriate temperature according to the required stretching ratio, simulating the industrial biaxial stretching film production process.

DESCRIPTION

Key Features

● Multiple Flexible Stretching Modes

Supports multiple stretching modes such as simultaneous stretching and longitudinal-first-then-transverse stretching; the stretching ratio and speed in the longitudinal and transverse directions can be independently adjusted to meet different R&D needs.

● Precise Drive and Control

Adopting dual high-performance servo motor drive with large torque and stable output, it realizes variable speed stretching of 0-300mm/s. Equipped with precision lead screw track transmission, the stretching speed is steplessly adjustable, and the temperature control accuracy is high, ensuring stable experimental process and repeatable data. Multiple PID temperature control points are provided to ensure uniform heating of the sample.

● Digital Engineering Instrument

The equipment is a digital engineering instrument with good repeatability and accurate data; it can generate tensile test curves for in-depth analysis by researchers.

Application Industries & Fields

Industries: Lithium battery, photovoltaic, electronics, medical and health, packaging, new materials, polymer materials, scientific research and education, aerospace and other fields. It is suitable for the testing and R&D needs of various film materials such as PE, PP, PET, PVDF.

Main Applications

● Carry out film biaxial stretching experiments, simulate actual production processes, optimize stretching process parameters, and provide accurate data support for large-scale production;

● Test the mechanical properties of film materials, analyze the torque change during the stretching process, and provide a scientific basis for material formula optimization and performance improvement;

● Produce small-batch functional stretched film samples to meet the needs of R&D prototyping, performance testing and product verification;

● Suitable for the R&D and testing of functional films such as optical films, lithium battery separators, and food packaging films, helping the implementation and application of new materials.

Main Technical Parameters

Model		FOCI-04S
Applicable material		PE、PP、PET、PTFE、PVDF
Sample thickness		0.02-1.5mm
Sample size		Min.95mm×95mm，Max.110 mm×110 mm
Stretching ratio		4:1（minimum size sample）
Stretching speed		0-300mm/s（stepless adjustable）
Stretching force		1000N
Operating temperature		Rt-250℃
Temperature Accuracy		±3℃
Working voltage		3φ380VAC±10%，1φ220VAC±10%，50Hz
Rated power		约23kW
L×W×H		2060mm×1125mm×1865mm
Weight		About 1300kg
