Key Features
● Customized on Demand, Flexible Matching
The core units of the equipment (unwinding, tanks, winding, etc.) can be modularly combined and custom-designed based on the customer's specific process needs, meeting the R&D requirements of different materials and coating processes.
● Precise Drive and Tension Control
The winding unit adopts a center-driven constant tension control scheme using a servo motor + magnetic powder clutch, ensuring neat winding and constant tension.

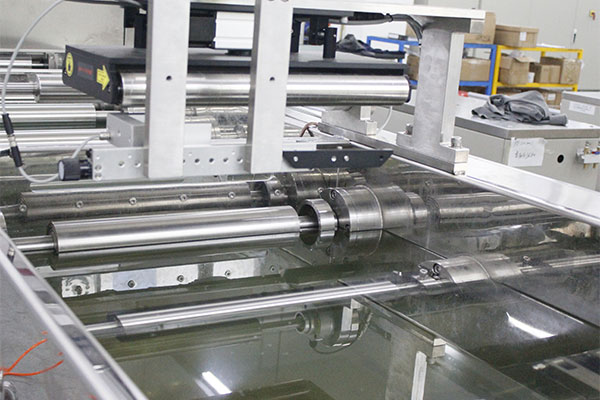

● Comprehensive Guiding and Tension System
Equipped with a guiding system (suitable for both transparent and opaque films) to correct web deviation in real-time. A multi-point tension roller layout precisely controls web tension, ensuring coating quality.
● Professional Immersion Coating Process Implementation

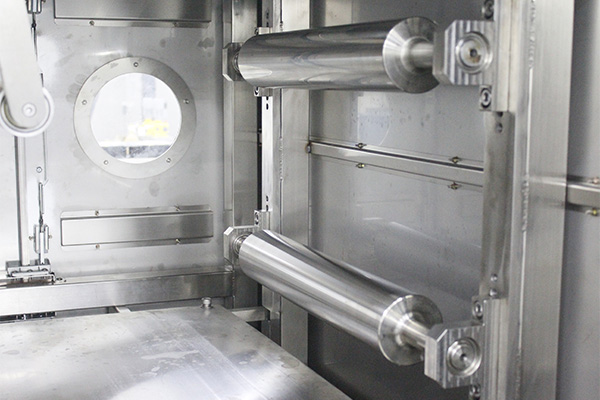

The equipment is optimized for the immersion coating process. It utilizes a gradient roller layout for top and bottom web threading, extending the substrate's immersion path in the tank to ensure sufficient coating adsorption and penetration.
Applications & Industries
Industries: New Energy, Functional Films, Filter Materials, New Materials, Chemical Industry.
Fields:
a.Battery Separators: Immersion modification and functional coating preparation for lithium-ion battery separators.
b.Functional Films: Coating process development for high-performance films such as antistatic films and barrier films.
c.Filter Media Industry: Uniform coating and functionalization treatment of filter materials.
d.Porous Materials: Suitable for uniform coating of porous substrates to achieve functional modification.
Main Technical Specifications
