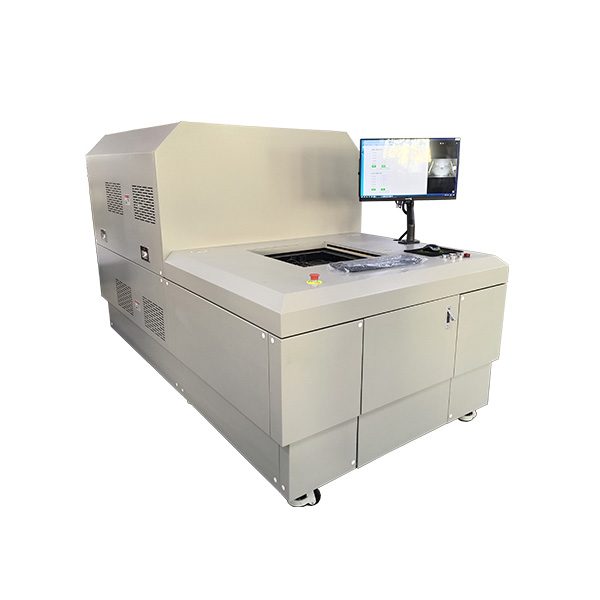

5X Biaxial Stretcher

Product Introduction

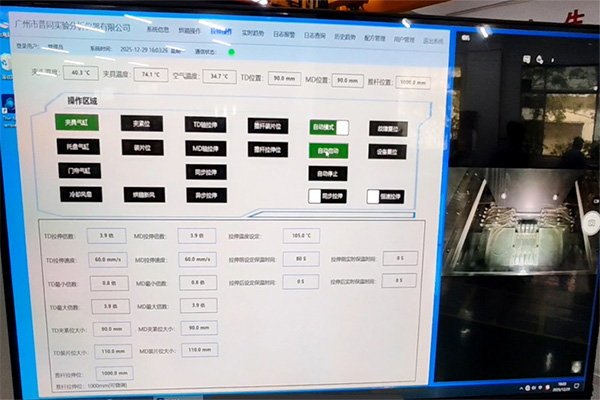

5X Biaxial Stretcher consists of clamping components, stretching components, stretching mechanism moving components, a heating oven assembly, an air knife assembly, and an electrical control system. The film biaxial stretcher can stretch film samples of a certain size according to the required stretch ratio at a suitable temperature and within a set time. The data obtained from the test can be used by researchers for analysis. The film biaxial stretcher developed by Potop is a data-oriented engineering instrument with good repeatability and accurate data. It can be operated offline, equivalent to a production line, improving experimental efficiency and shortening product R&D cycles.

DESCRIPTION

Key Features

● Multiple Stretching Modes

Flexible and Adjustable Supports various stretching modes such as simultaneous biaxial, sequential biaxial, unconstrained uniaxial, and constrained uniaxial. The stretching speed is adjustable from 0-300 mm/s to meet different R&D requirements.

● Precise Drive and Control

Driven by high-performance servo motors in both directions, providing high torque and stable output. Equipped with multiple PID temperature control points for high precision, ensuring uniform heating of the sample.

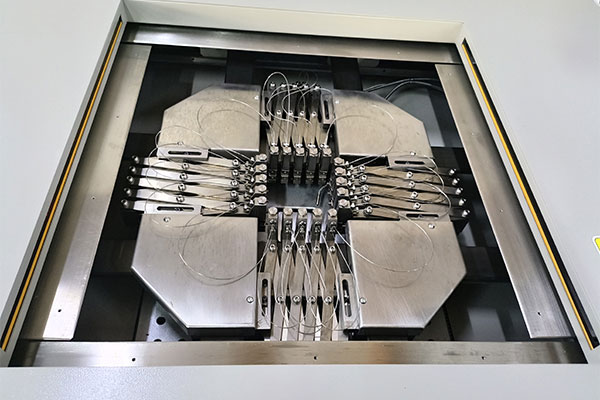

● Flexible Clamping Options

Optional pneumatic clamps or mechanical self-locking clamps are available. They grip the film tightly, are wear-resistant, and ensure even force distribution during stretching, guaranteeing film stretching quality.

● Dual Oven Design, Complete Process

Equipped with dual ovens for the stretching zone and the heat setting zone, enabling a continuous stretching and setting process with a temperature control accuracy of approximately ±3°C.

Application Industries & Fields

Industries：Suitable for lithium battery, photovoltaic, electronics, medical and health, packaging, new materials, polymer materials, scientific research and education, aerospace and other industries, and can meet the testing and R&D needs of various film materials such as PE, PP, PET, PVDF.

Applications：

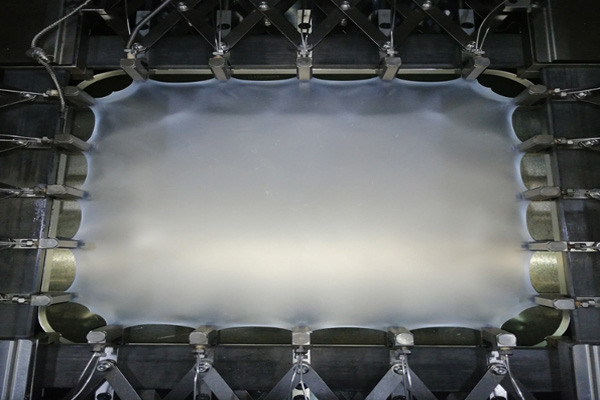

● Biaxial Stretching Performance Test: Test the biaxial stretching performance of polymer sheet films and study the stretching orientation mechanism of materials.

● Production Line Simulation: Offline operation is equivalent to a production line, adjusting the formula and process according to the performance of the sample film, which greatly reduces the trial production cost.

● Multiple Stretching Modes: Various stretching methods such as unidirectional restricted, unidirectional unrestricted, biaxial synchronous and biaxial asynchronous can be performed.

● Wide Material Applicability: Suitable for various polymer materials such as PE, PP, PET, PLA, PA, PVDF, PEEK.

Main Technical Parameters

Model		FOCI-05
Applicable material		PE、PP、PET、PTFE、PVDF
Sample thickness		0.02-1.5mm
Sample size		Minimum 95mm×95mm，maximum 110 mm×110 mm
Stretching ratio		5:1(minimum size sample)
Stretching speed		0-300mm/s(stepless adjustable)
Stretching force		1000N
Clamp air pressure		2.5MPa
Operating temperature		Rt-250℃
Temperature accuracy		±3℃
Working voltage		3φ380VAC±10%，1φ220VAC±10%，50Hz
Rated power		About 26kW
L×W×H		2700mm×1500mm×1700mm
Weight		About 2500kg
